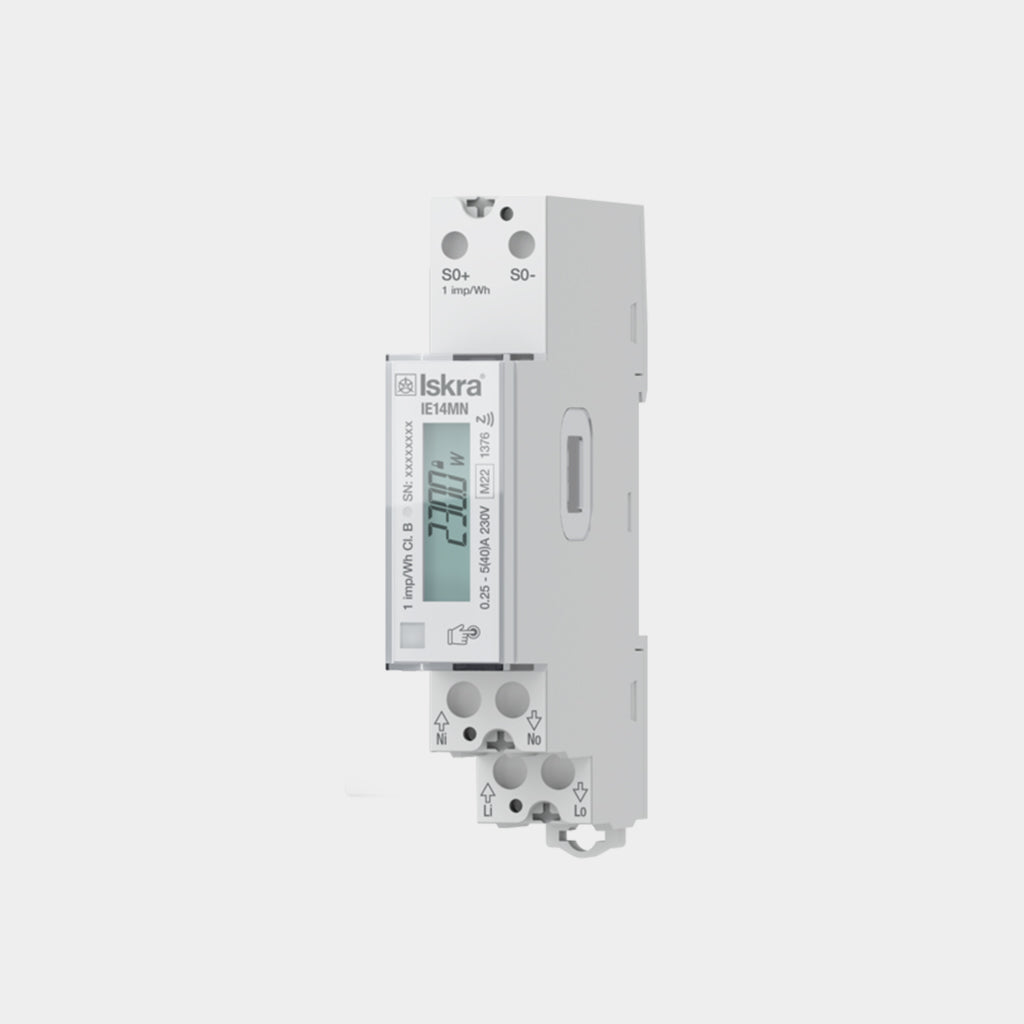

Energy meter IE14xx

Energy meters IE14xx (also MID certified models) are intended for energy measurements in single-phase electrical power network and can be used in residential, industrial, utility and EV-charging applications.

Direct connection up to 40A with wide range of measurements such as active / reactive / apparent power and energy, current, voltage, frequency, power factor, power angle, frequency and THD.

Optional new functionalities such as IR side communication, built-in NFC and Alarm function.

IR – for easy communication with optional extensions such as Iskra bistable relay and Smart Gateway.

Alarm – detection of events and switching loads via external bistable switch.

TYPES

• IE14-S – S0, backlight
• IE14MS – S0, backlight, captouch, MID
• IE14MN – S0, backlight, captouch, IR, NFC, MID
• IE14MM – Mbus, backlight, captouch, IR, NFC, MID
• IE14MD – Modbus, backlight, captouch, IR, NFC, MID


  • Single-phase direct connected DIN-rail mounting meter
  • Class 1 for active energy according to EN 62053-21 and MID approval (option) for class B according to EN 50470-3
  • Class 2 for reactive energy according to EN 62053-23. (with Slovenian national approval)
  • Bidirectional energy measurement (import/export)
  • Maximum current 40 A (Imax)
  • Basic current 5 A (Ib)
  • 230 V rated system voltage input (Un)
  • Voltage operating range (-20 % ... +15 %) Un
  • Reference frequencies 50 Hz or 60 Hz
  • Temperature range climatic condition as indoor meter according EN 62052-11
  • Custom LCD display with 7 digits (100 Wh resolution)
  • Multifunctional front red LED
  • LED constant 1000 imp/kWh or 1000 imp/varh
  • IR serial communication (optional)
  • Capacitive touch button for setting and control
  • Backlight for better visibility
  • Special functions added for easier integration into monitoring and control systems (e.g. Counters Freeze)
  • Measurements of:
    • energy (active/reactive/apparent)
    • power (active/reactive/apparent)
    • voltage
    • current
    • frequency
    • power factor
    • power angle
    • active tariff (option)
    • THD of voltage
    • THD of current
  • Pulse output according to EN 62053-31 (option)
  • RS485 Serial communication (option)
  • M-Bus Serial communication (option)
  • NFC communication for easy setting and downloading meter data via mobile app
  • 4 Tariffs via communication (option)
  • Alarm function and external relay control via IR (option)
  • Sealable terminal cover
  • 1 DIN module width
  • User-friendly MiQen software
