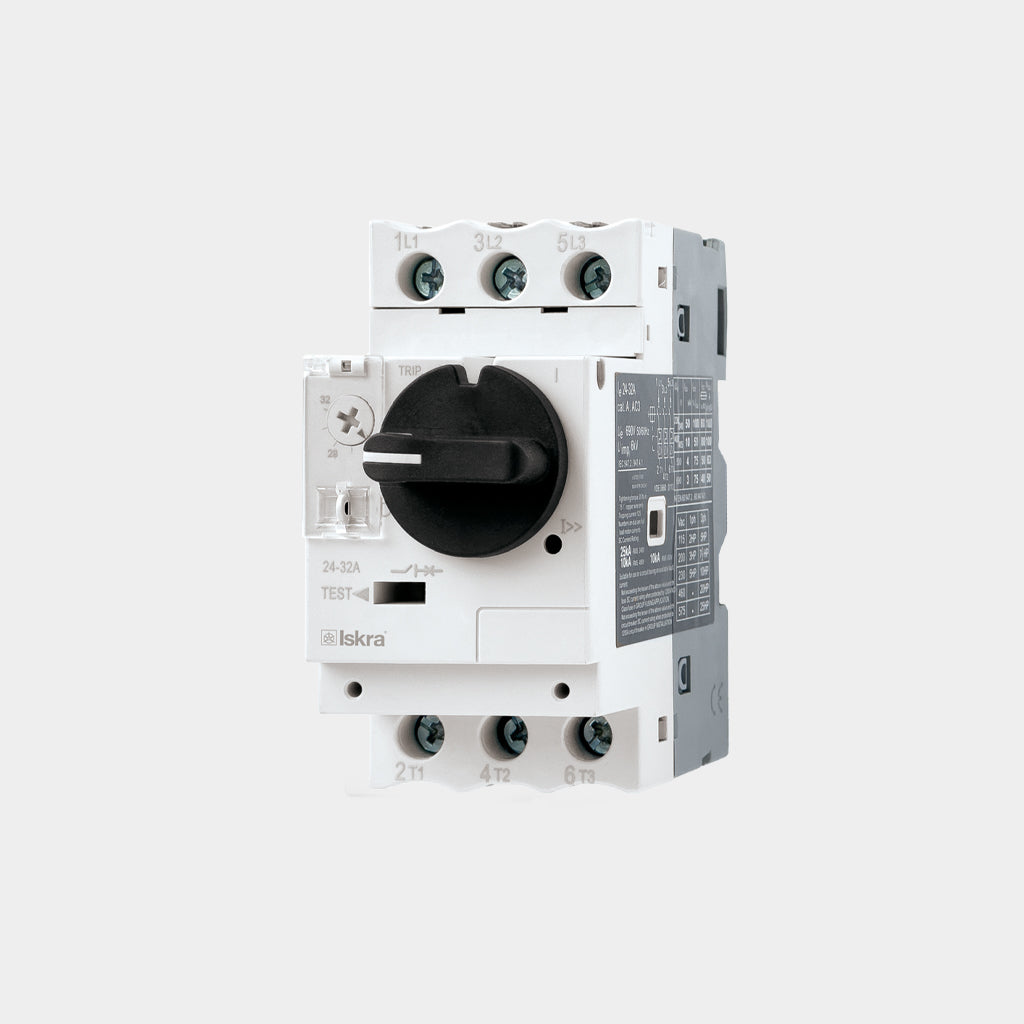

MSR motor protection circuit breakers

MSR series motor protection circuit breaker is suitable for

AC 50/60Hz, rated voltage to 690V, rated current 0.1A to

32A circuit, as a three-phase motor overload, short circuit,

open-phase protection and infrequent starting control,

can be used for power distribution line protection and

infrequent load conversion, can also be used as an isolator.

Types

0.16A - 32A Rotary handle type

Benefits

Miniature Circuit Breakers

Accessory portable design: It can easily and reliably

insert, buckle and install a variety of auxiliary accessories

outside the body.

Can simulate mechanism tripping design: The mechanism

can be tripped through Test, which is convenient for

simulating and testing the cooperating alarm accessories.

Laser marking on
